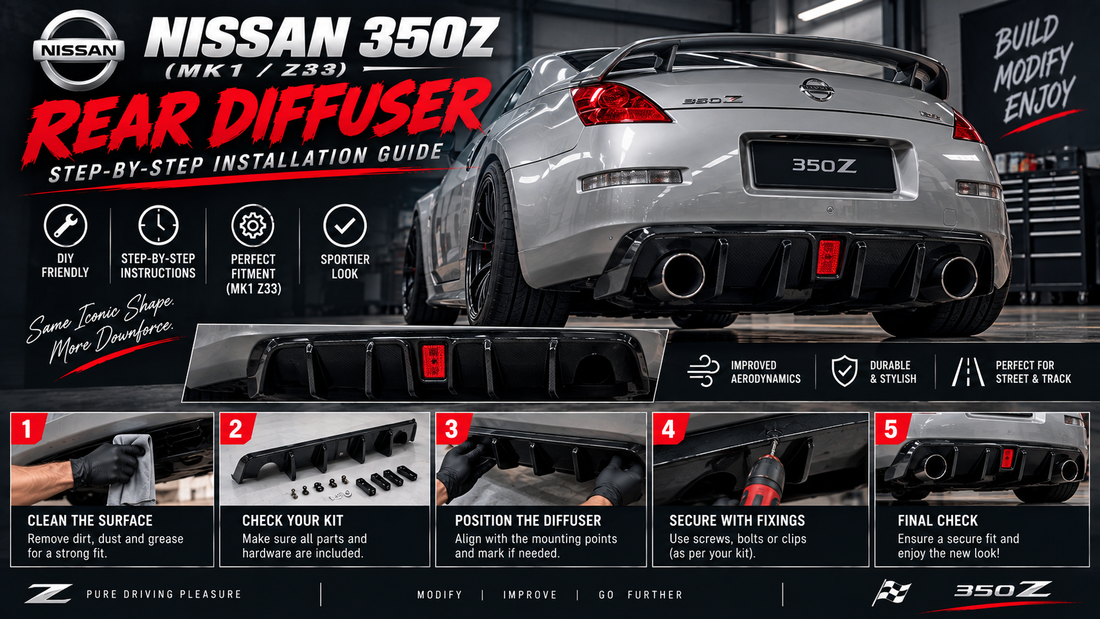

A rear diffuser is one of the most noticeable upgrades from behind on a Nissan 350Z, and getting the exhaust cutouts and ground clearance right is what separates a factory-look fit from an obviously aftermarket one. This guide covers the fitting process for our Nissan 350Z rear diffuser, available in Gloss Black and Carbon Fibre finishes for the MK1 generation (2002-2008).
Tools you'll need
- Isopropyl alcohol (IPA) or a dedicated panel-prep wipe
- Microfibre cloths (lint-free)
- Masking tape and a tape measure
- Automotive-grade double-sided adhesive tape or panel bonding adhesive (usually supplied with the diffuser)
- Trim clips or self-tapping screws, if included in your fitting kit
- Axle stands or ramps, for safe access underneath the rear bumper
Step 1: Check your fitment and exhaust layout
Confirm you have the MK1 (2002-2008) generation before ordering, and pay close attention to exhaust exit style — the 350Z was fitted with several aftermarket and facelift exhaust configurations over its life, and a diffuser's cutouts are shaped for a specific layout. Check exhaust tip spacing against the diffuser's cutout positions before committing to fit.
Step 2: Clean and prep the surface
Wash the lower rear bumper thoroughly and dry it completely. Wipe the mounting area with isopropyl alcohol to remove all wax, polish, road grime and underseal residue — this area collects more road dirt than any other body kit panel, so give it extra attention.
Step 3: Dry-fit before you commit
Offer the diffuser up to the bumper without removing the adhesive backing. Check the exhaust cutouts line up cleanly around the tips with even clearance on all sides, and that the diffuser sits flush and level across its full width. This is the step that catches exhaust clearance issues before anything becomes permanent.
Step 4: Bond and secure
Remove the adhesive backing and, working from the centre outward, press the diffuser firmly into place within your marked guides. Apply firm, even pressure along the full width for at least 60 seconds. If your kit includes clips or screws at the factory undertray points, fit these once the tape has made initial contact.
Step 5: Let it cure
Most automotive-grade adhesives reach a workable bond within an hour but need 24–48 hours to fully cure. Avoid driving at speed, over speed bumps, or through a car wash during this window.
Common mistakes to avoid
- Not checking exhaust exit style before ordering — the single most common return reason, especially on a car as commonly modified as the 350Z
- Skipping the IPA wipe-down — this is the dirtiest panel on the car and residue is the top cause of a diffuser lifting
- Fitting in cold weather without warming the adhesive or panel first
- Not accounting for exhaust heat — keep a small gap around exhaust tips rather than a tight seal
- Ignoring ground clearance on speed bumps and steep driveways, especially on a lowered Z
FAQs
Do I need to drill any holes?
Most of our diffusers are designed as a direct adhesive fit, with clips or screws at existing factory undertray points where a kit is supplied — check the individual listing for the specific fitting method.
Will this fit my aftermarket exhaust?
Diffuser cutouts are matched to specific exhaust exit layouts — always check the product listing's exhaust configuration against your setup before ordering, especially if you've fitted an aftermarket system.
Can I fit this myself, or should I get it professionally fitted?
Most owners fit this themselves in under an hour. If you're not confident working with automotive adhesives underneath the car, we'd always recommend a professional bodyshop or detailer for the best long-term finish.
